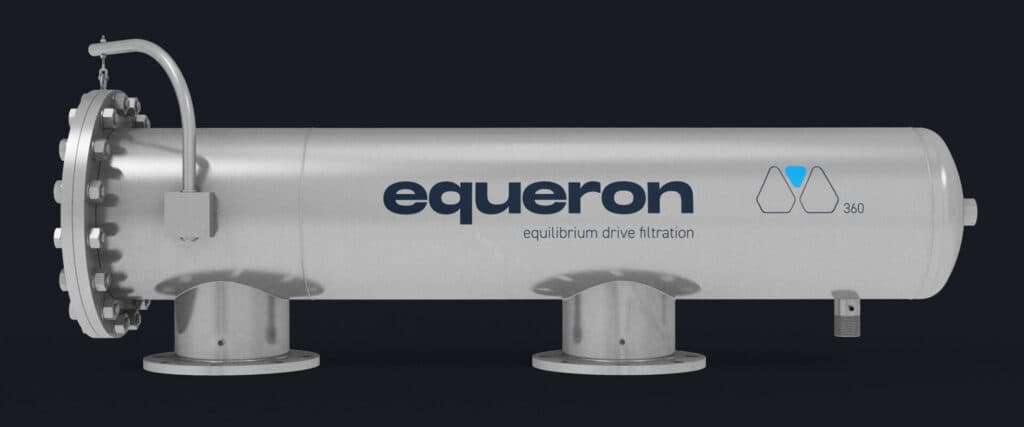

Automatic Self-Cleaning Screen Water Filter
Maximum Pressure
12 bar (175 psi)
Minimum Pressure
2.0 bar (30 psi)
Inlet/Outlet Flanges
8-, 10- or 12-inch
Max Flow
3,525 gpm
Flush Connection
2-inch
Introducing our technology-leading self-cleaning screen filters: Equeron Equilibrium Drive® Filtration. The hydraulically balanced Equilibrium Drive® system rotates the suction nozzles across the screen in both directions without pistons, electric motors, or limit switches.The Equilibrium Drive® 15 second screen cleaning cycle is automatically initiated when a pressure differential across the screen increases to a preset threshold (commonly 0.5 bar/7psi). The filtration process remains uninterrupted during the cleaning cycle
The full brochure for the Equeron 360 can be viewedhere

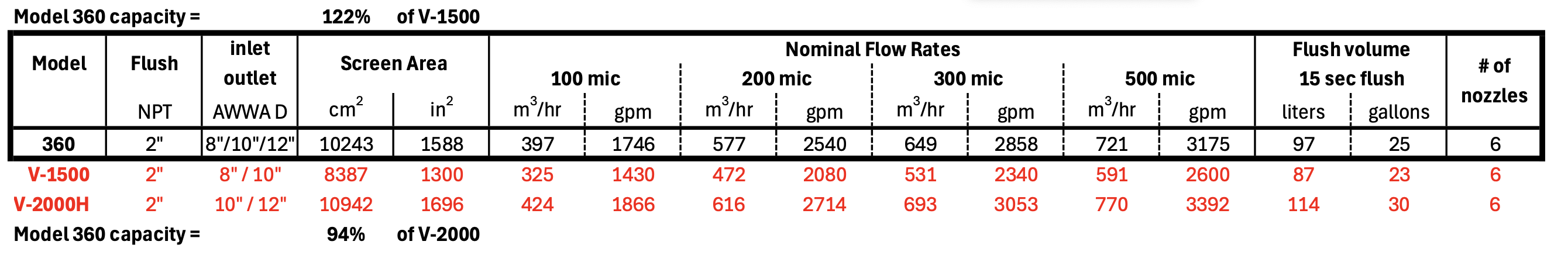

The Equeron 360 is a direct drop-in replacement for the discontinued VAF V-1500, and features an increased capacity of 122%. A full comparison of these two filters can be foundhere

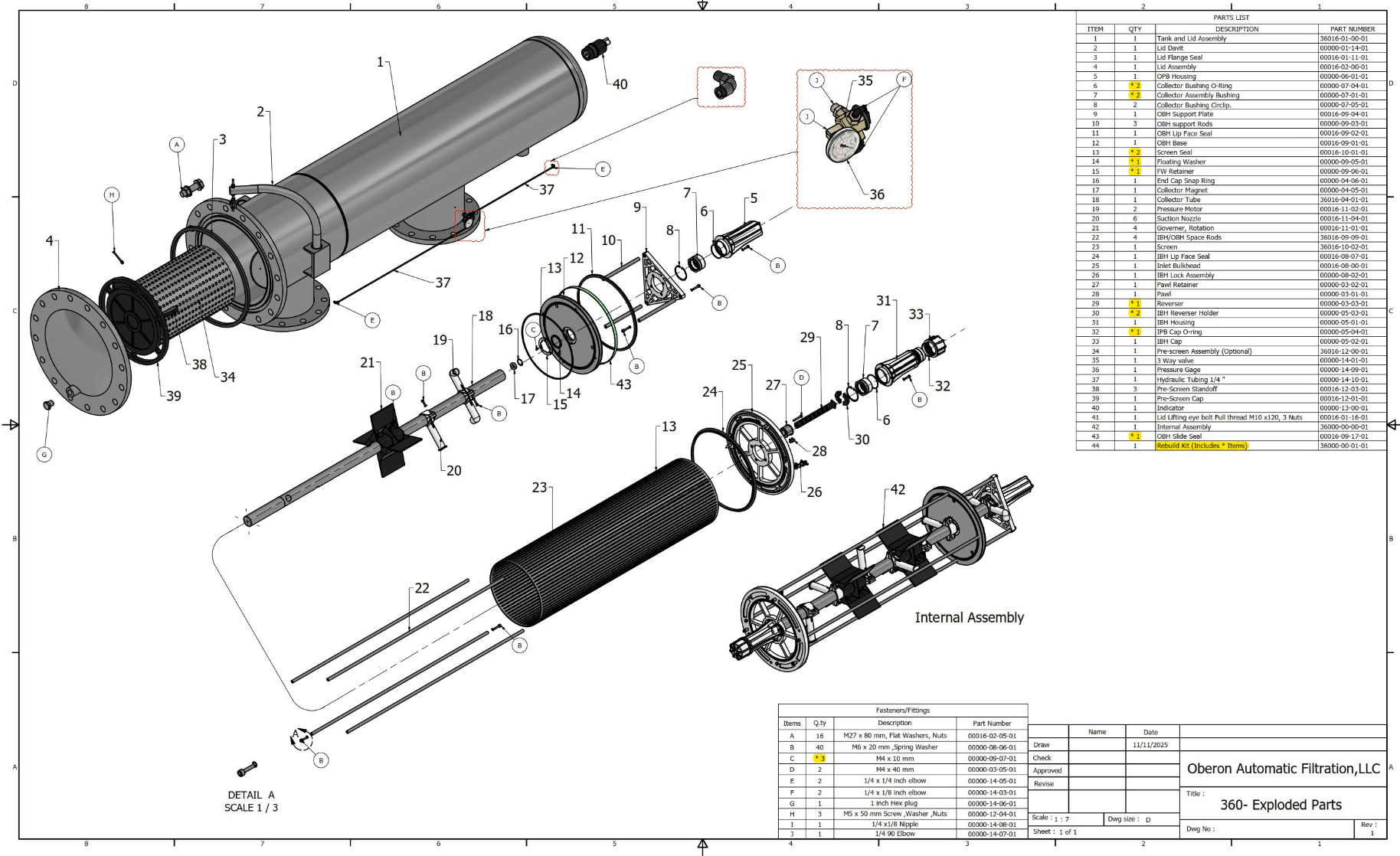

For information regarding parts for the Equeron 360, please see thisexploded view
The Equeron 360 is easy to operate and maintain, the full operation and maintenance manual can be foundhere
Every Equeron 360 comes with a limited product warranty, which can be foundhere
