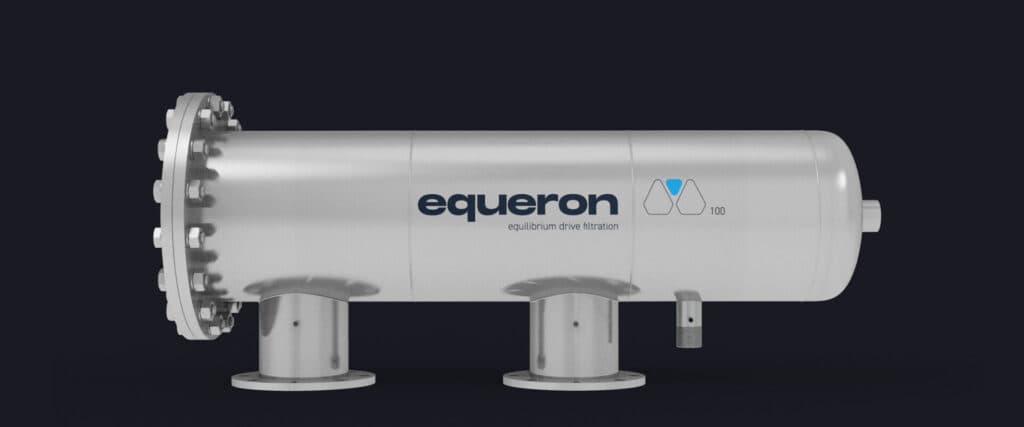

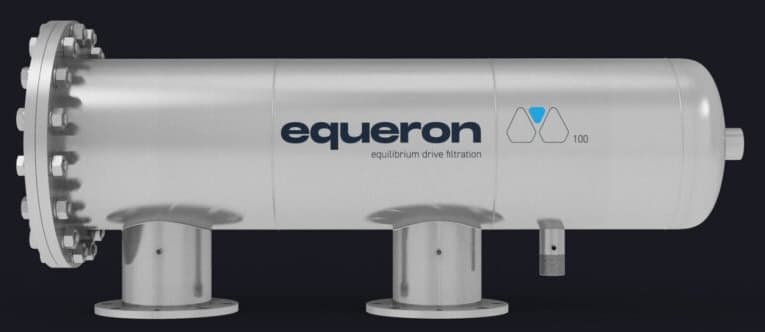

Automatic Self-Cleaning Screen Water Filter

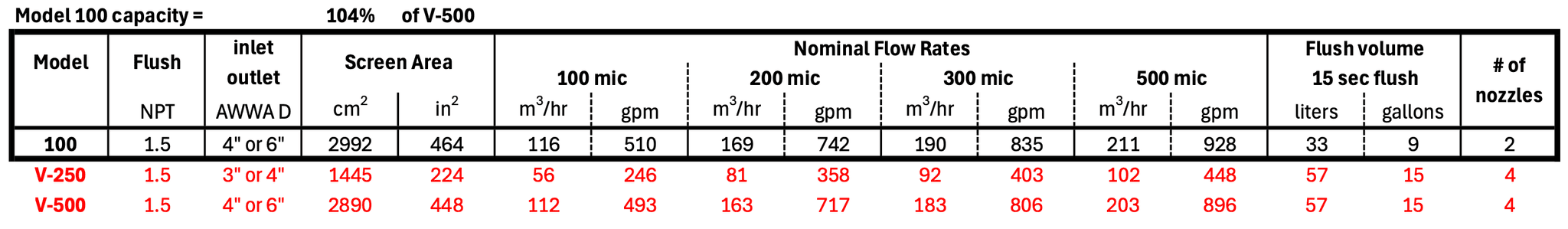

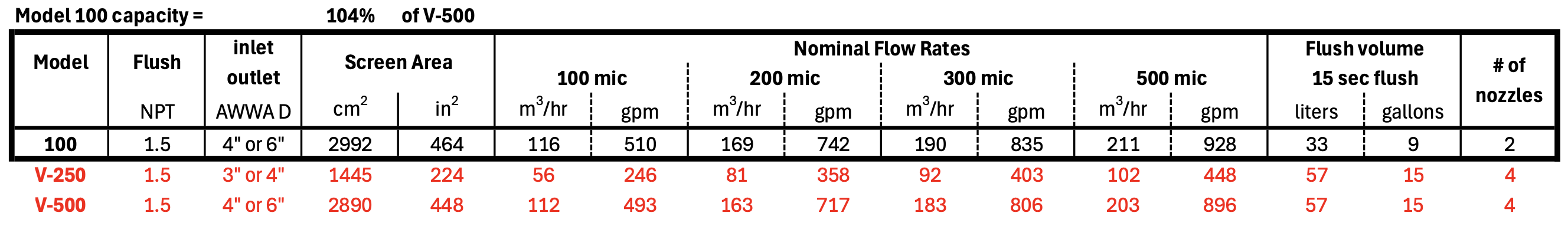

Maximum Pressure
10.7 bar (150 psi)
Minimum Pressure
2.0 bar (30 psi)
Inlet/Outlet Flanges
4- or 6-inch
Max Flow
928 gpm
Flush Connection
1-1/2-inch
Introducing our technology-leading self-cleaning screen filters: Equeron Equilibrium Drive® Filtration. The hydraulically balanced Equilibrium Drive® system rotates the suction nozzles across the screen in both directions without pistons, electric motors, or limit switches. The Equilibrium Drive® 15 second screen cleaning cycle is automatically initiated when a pressure differential across the screen increases to a preset threshold (commonly 0.5 bar/7psi). The filtration process remains uninterrupted during the cleaning cycle.
The full brochure for the Equeron 100 can be viewedhere
The Equeron 100 is a direct drop-in replacement for the discontinued VAF V-500, and features an increased capacity of 104%. A full comparison of these two filters can be foundhere

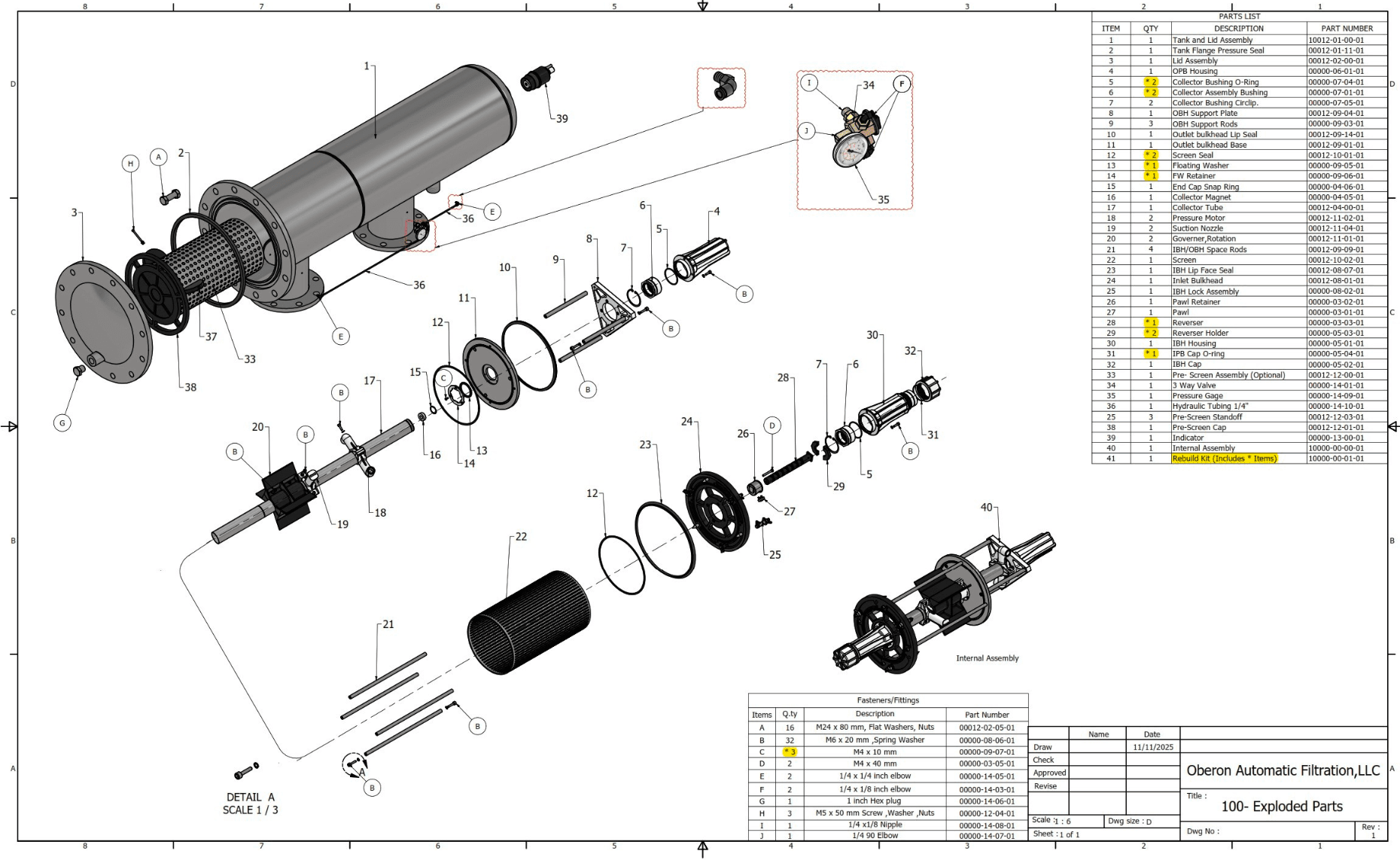

For information regarding parts for the Equeron 100, please see thisexploded view

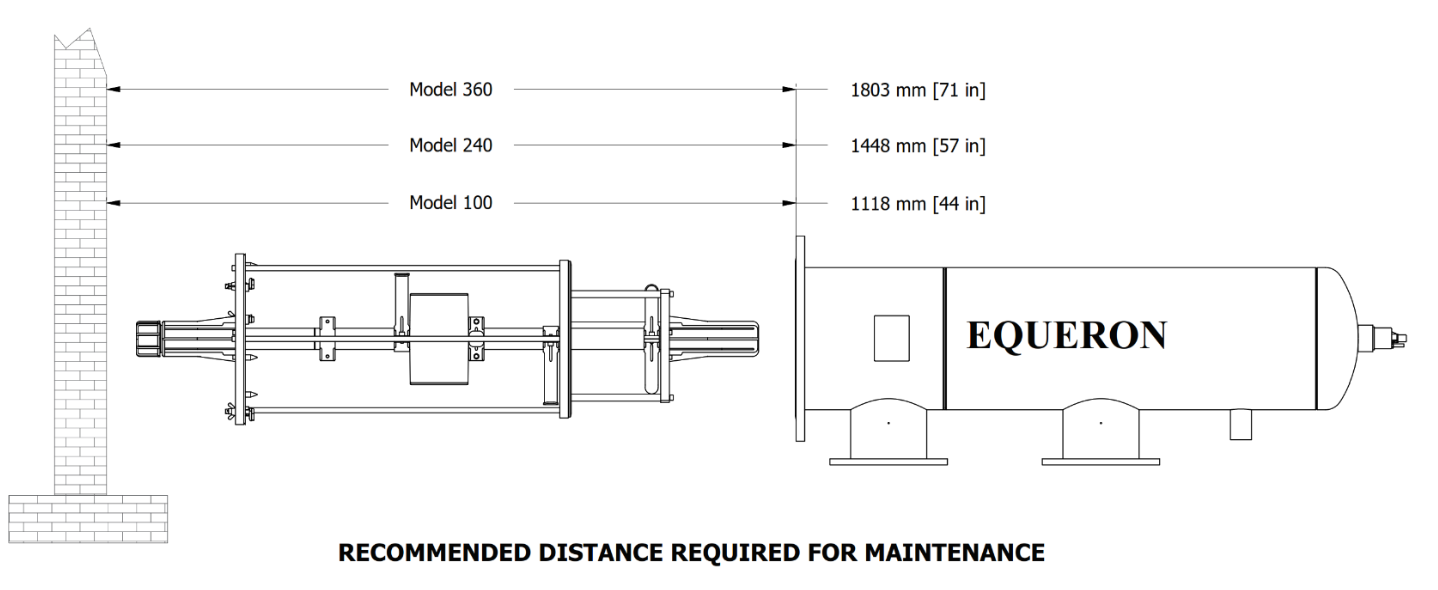

The Equeron 100 is easy to operate and maintain, the full operation and maintenance manual can be foundhere
Every Equeron 100 comes with a limited product warranty, which can be foundhere
